Lub tshuab no yog dab tsi?
Lub tshuab ua chalk yog cov cuab yeej tshwj xeeb uas tsim los ua cov ntaub ntawv raw-xws li gypsum los yog calcium carbonate- mus rau hauv cov khoom siv chalk tiav ntawm ntau yam duab, xim, thiab ntau thiab tsawg. Ua tsaug rau ib qho kev qhia dav thiab dav ntawm cov lus qhia tshwj xeeb thiab cov qauv, hom khoom siv no muaj peev xwm ua tau raws li qhov tshwj xeeb ntawm cov chaw tsim khoom sib txawv.
Chalk Machine Specifications
| Degree ntawm Automation | Qauv | Peev xwm (pcs / h) | Zuag qhia tag nrho Dimension (mm) | Qhov hnyav (kg) |
|---|---|---|---|---|
| Phau ntawv | FM400-1 | 2000-4000 | 530×380×340 | 28 |
| FM800-1 | 6000-8000 | 660×480×360 | 58 | |
| Tsis siv neeg | FM800-2 | 8000-12000 | 1400×1150×760 | 230 |
| FM800-4 | 12000-24000 | 1760×1150×760 | 350 | |
| FM800-6 | 24000-32000 | 1760×1150×760 | 480 | |
| FM800-8 | 32000-48000 | 1480×1480×560 / 1400×1150×760 | 650 | |
| nqe (USD) | $1200 | |||
|
"Cov qauv hom, dej hiav txwv freight, thiab ntoo crating- cov khoom peb tus nqi sib txawv me ntsis. Yog li tus lej koj pom ntawm nplooj ntawv? Qhov no tseem ceeb tsuas yog tso nyiaj rau cov khoom siv nws tus kheej xwb. Koj puas xav txheeb xyuas tus nqi tsaws zaum kawg? Tham ncaj qha rau peb pab pawg muag khoom. Lawv mam li rhuav nws rau koj raws li cov nqi ntawm lub sijhawm: piv txwv li, cov nqi ntawm cov khoom siv hluav taws xob tiag tiag yuav tsum tau ua. daim ntawv pov thawj- uas ntxiv rau daim nqi ib yam nkaus, pab pawg muag khoom yuav muab cov lus qhia tseeb rau koj nrog rau tag nrho cov kab-khoom tawg." |
||||
Nqi-zoo rau cov pob txha
Ntau ntawm peb cov neeg siv khoom rov qab tau tag nrho cov peev txheej hauv peb mus rau rau lub hlis ntawm kev ua haujlwm ua haujlwm ob zaug. Yog tias koj tab tom nrhiav los txhawb cov nyiaj tau los thiab nce kev ua tiav, qhov no yog ib qho ntawm kev nyab xeeb kev twv txiaj hauv pem teb.
Cyclic ua haujlwm tsim
chaw nres tsheb tig es tsis txhob shuttling rov qab. Qhov ntawd tua tuag lub sijhawm mus ncig. Qhov tshwm sim? Smoother workflow, ntau dua qhov tseeb tso tawm ib zaug.
Tuag yooj yim khiav
Ib nrab hnub taug kev rau koj tus txiv neej hauv pem teb, thiab nws zoo. Tsis xav tau ib tus kws kho mob tshwj xeeb - uas ncaj qha txiav koj cov nyiaj siv ua haujlwm.
Multi-chaw nres tsheb layout
Qhov ntawd yog qhov uas qhov kev nrawm nrawm nrawm rau hauv. Piv nrog rau ib qho chaw nres tsheb rig, koj tab tom saib yooj yim dua ob zaug ib teev. Tsis muaj idle tos.
Vim li cas thiaj tsim nyog yuav Chalk -Ua Tshuab
Muaj peev xwm tsim tau? Nws nplai. Los ntawm ib lub tshuab hauv tsev rhiav cranking tawm ob peb puas kilos ib hnub twg, tag nrho txoj kev mus rau ib tug tag nrho automated kab noj tons rau hauv tej hnab. Koj lub npe throughput, peb twb tuned ib configuration rau nws.
Cov qauv yog nruj, qhov ntev yog optimized. Uncrate nws, theem taw, ntsaws rau hauv lub zog - koj tab tom ua cov khoom hauv ib teev. Tsis muaj teeb meem rigging lossis calibration.
Consistency batch tom qab batch. Qhov ntawd txhais tau tias tsawg dua cov khoom siv nkag mus rau hauv qhov tsis lees paub. Cov neeg ua haujlwm feem ntau pom cov txiaj ntsig sab qaum teb ntawm 97% thaum lawv hu rau hauv kev sib xyaw.
Ntau yam? Nws yuav khiav dawb, xim, tsis muaj plua plav qhia chalk, txawm tias muaj cov cim. Txhua hom muaj qhov sib txawv - qhia chalk txav nrawm, muaj chalk rub tus nqi siab dua ib kilo. Sib tov thiab sib xyaw kom tau txais txiaj ntsig zoo tshaj plaws.
Ua zoo li lub tank. Cov khoom hnav (pwm, shafts) dhau mus txog ntau lab lub voj voog. Yog li koj daim ntawv them nqi kho mob qis qis - tej zaum yuav muaj cov ntsaws ruaj ruaj thiab cov roj xyuas txhua lub caij.
Cov ntaub ntawv twg siv tau?
Raw khoom compatibility? Dav thiab zam txim. Lub kaw lus ua haujlwm nrog cov khoom siv uas pheej yig, yooj yim rau qhov chaw, thiab twb zaum hauv cov khoom siv hauv zos feem ntau. Tsis muaj cov khoom xyaw sib txawv, tsis ntev - ua cov khoom lag luam mob taub hau.
Qhov kev teeb tsa no khiav thoob plaws txhua tus qauv hauv FM400 thiab FM800 series - yog li txawm tias koj tab tom pib me me lossis loj dua, cov khoom hloov pauv tau zoo ib yam.
Nov yog yam koj yuav nquag pub rau nws:
Hemihydrate gypsum hmoov - cov pob txha ntawm feem ntau cov qauv chalk
Calcium carbonate - txhim kho hardness
Talc hmoov - ntxiv smoothness thiab tso tawm zog
Cov khoom sib xyaw ua ke - cov kua ntses zais cia (vim los ntawm batch)
Dej huv - tsis muaj dab tsi zoo nkauj, tsis muaj av nkos lossis ntsev
Xim hmoov / xim - rau txhua yam los ntawm pastel mus rau kev lag luam
Binders / additives - tuav cov sib tov ua ke, tswj kev teeb tsa lub sijhawm
Anti-slip additives – tseem ceeb heev rau plua plav thiab qhia chalk
Xav paub seb koj qhov kev sib xyaw tshwj xeeb yuav khiav? Los yog xav tau ib daim ntawv qhia kev cai? Tiv tauj peb ncaj qha - peb mam li ntsuam xyuas kev sib raug zoo thiab xa rov qab cov kev daws teeb meem rau koj cov khoom noj.
Cov khoom tiav Showcase
Puas yog chalk los ntawm peb lub tshuab ua chalk? Nws tsis yog qhov zoo nkauj xwb - nws rov qab, ntsuas tau zoo dua. Peb khiav precision-av pwm, tsis yog tawm ntawm lub txee tuag uas hnav tawm tom qab kaum txhiab lub voj voog. Qhov ntawd ua rau koj ib tus pas nrog qhov tseeb qhov sib xws: cov phab ntsa ncaj, tiaj tus, ib qho chaw zoo li koj xav tias nws tau hlawv. Tam sim no, cov lus nug nyuaj- tau txais nws yuam kev, thiab koj tab tom squeaking thoob plaws lub rooj tsavxwm los yog cheb li crumbles. Peb tau hu xov tooj mus rau qhov nqaim tensile ntau qhov kev tawg poob qis, tab sis kev sau ntawv nyob twj ywm buttery, tsis muaj cab. Xim them nyiaj yog ntom thiab txawm tias tom qab batch, txawm tias nws yog cov qauv dawb, ci xim, lossis tsis muaj plua plav. Hais txog tsis muaj plua plav: qhov ua kom yuam kev tiag tiag tsis yog tshem tawm cov plua plav tag nrho - nws yog tswj cov particle loj yog li qhov me me tawm los poob ncaj nraim es tsis txhob ntab mus rau hauv qhov chaw ua pa. So ntxuav nrog ib daim ntaub qhuav, xoom residue. Thiab vim tias peb cov txiaj ntsig tau nce siab tsis tu ncua, koj tsis them rau cov khoom tawg uas muab zais rau hauv lub thawv. Los ntawm tus neeg muag khoom lossis tus xa tawm qhov kev xav, qhov tseem ceeb yog -chaw nres nkoj soj ntsuam chij tawg chalk, thiab cov neeg yuav khoom txawv teb chaws tsis lees txais ntau qhov tsis sib xws. Peb muaj peev xwm tshem tau cov kab tsis muaj yeeb yam.
Nws ua haujlwm zoo li cas?
A chalk- ua tshuab yog ib qho cuab yeej siv hluav taws xob uas hloov cov gypsum slurry mus rau hauv cov khoom sib xws, puas tsuaj - cov chalk resistant los ntawm kev tswj cov dej kom meej - rau - gypsum piv, lub tshuab nqus tsev nqus casting, lub rooj sib txuas sib txuas, thiab qis - kub, qhuav
Hauv qhov xwm txheej twg tuaj yeem siv tau?
Loj - nplai ntau lawm ntawm kev qhia chalk (dawb / xim), hmoov av tsis muaj hmoov av, muaj cov cim chalk, kos duab chalk, thiab lwm yam.
Cov yam ntxwv tseem ceeb yog dab tsi?
-

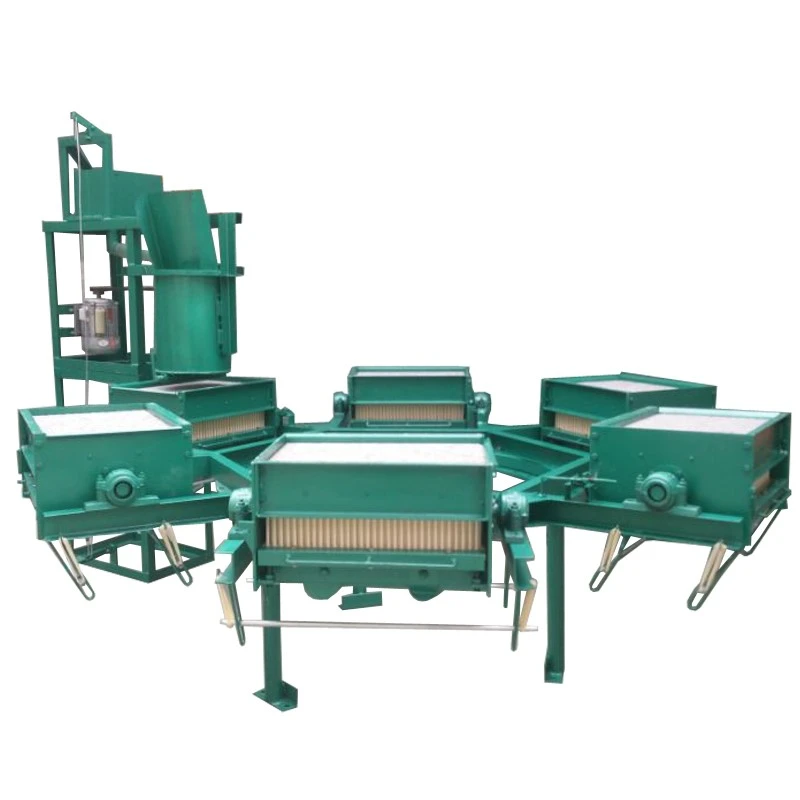

Multi-station rotary tsim
efficiency tsis yog hais txog cov leeg. Nws yog hais txog kev sib dhos.
-
Model range npog nws tag nrho
los ntawm tes-crank mus rau tag nrho nws pib. Xaiv yam uas haum koj lub hnab nyiaj thiab koj ntim.
-
Tuag yooj yim khiav
ib tug tshiab ships khoom nyob rau hauv ib nrab hnub. Tsis xav tau ib tug high-nqi tech.
-
Tsis txhob xaiv cov khoom
pub rau gypsum los yog calcium carbonate. Hloov ntawm cov xim dawb, xim, tsis muaj plua plav, lossis muaj cov cim chalk ntawm tib lub tshuab
Vim li cas thiaj xaiv Lerford?
Technology kev coj noj coj ua? lawv txhais tau tias peb tsis siv neeg ib qho -steev ejector txiav demolding lub sij hawm ze li ntawm ib nrab, ua kom yield sab qaum teb ntawm 97%.
Ib qho - nres kev daws teeb meem txhais tau tias koj tuaj yeem pib nrog phau ntawv rig thiab nplai rau lub tshuab PLC tag nrho
Kev tsim tawm yooj yim tsis yog lo lus buzzword-hloov los ntawm nyias-paj dawb chalk mus txog 4,000 sticks ib teev.
Tsawg tus nqi ntawm cov tswv cuab
Lub sij hawm teb Tsawg dua lossis sib npaug li 1 teev? Xa cov yeeb yaj kiab WhatsApp, tau txais cov lus teb nyob rau hauv ib teev, ntxiv rau ib qho - xyoo lav uas yeej ncaws tawm hauv thawj 30 hnub ntawm tes- tuav.
 |
 |
 |
 |
Cov ntsiab lus
Peb cov chalk- ua tshuab yog ntau- chaw nres tsheb, lub voj voog muaj peev xwm ua tau plaub yam khoom sib txawv ntawm ib chav tsev. Nws yog tus neeg siv heev - tus phooj ywg uas ua tiav cov novice tuaj yeem paub nws txoj haujlwm hauv ib nrab hnub xwb, thiab nws yuav tsum muaj 12 square metres ntawm qhov chaw kom sawv thiab khiav. Xws li los ntawm phau ntawv mus rau tag nrho automated configurations, lub tshuab ntau lawm pace scales precisely kom phim koj cov zis xav tau.
FAQ
Yuav ua li cas muaj pes tsawg daim ntawm chalk koj lub chalk ua tshuab ua tau nyob rau hauv ib hnub? Thov tsis txhob muab cov duab theoretical rau peb xwb.
,Nws nyob ntawm tus qauv tshwj xeeb thiab lub tshuab lub voj voog tus nqi. Rau FM400 series (cov qauv siv phau ntawv), tus neeg ua haujlwm txawj ua haujlwm ib zaug 8- teev ua haujlwm tuaj yeem tsim tau ntawm 4,000 thiab 5,000 daim. Rau FM800 tag nrho automated kab-dua, raws li 8-teev hloov pauv- ntau lawm ib txwm nyob ntawm 25,000 txog 32,000 daim. Yog vim li cas qhov fluctuation? Vim hais tias lub sij hawm ziab tsis tau muab tso rau hauv lub tshuab ua haujlwm; koj lub qhov cub kom qhuav lub peev xwm tig tau yog qhov ua tsis tau. Peb tau ua qhov kev sim teb tiag tiag: lub voj voog ua tiav - suav nrog kev txhaj tshuaj slurry, solidification, demolding, thiab rov- txhaj tshuaj- siv sijhawm li ntawm 45 txog 60 vib nas this. Koj tuaj yeem ua lej ntawm koj tus kheej: 60 cycles ib teev, tsim 800 daim ib lub voj voog, yields theoretical siab tshaj plaws ntawm 48,000 daim. Txawm li cas los xij, hauv kev xyaum, koj yuav tsum suav rau cov haujlwm pabcuam-xws li kev sib pauv cov tais, ntxuav cov ntxaij vab tshaus, thiab ntxiv cov ntaub ntawv raw-yog li koj yuav tsum txo qis qhov kev xav ntawd li ntawm 20%. Tsis txhob tso koj txoj kev ntseeg rau cov neeg muag khoom thov cov nqi tsim khoom ntawm 50,000 daim; cov duab no sawv cev rau "dry run" cov ntaub ntawv tau los ntawm tag nrho tsis suav nrog txhua lub sijhawm tsim nyog.
Puas yog peb nruj me ntsis siv gypsum hmoov ua cov khoom siv raw? Puas muaj peev xwm siv calcium carbonate hloov?
Yog, qhov ntawd yog ua tau, txawm tias qhov kev ntxhib los mos thiab kev xav yuav txawv. Gypsum hmoov (calcium sulfate hemihydrate) solidifies sai sai thaum sib cuag nrog dej - tso cai rau demolding li ntawm 2 mus rau 5 feeb. Cov chalk uas tau tshwm sim yog qhov muag muag thiab sau tau yooj yim, ua rau nws zoo tagnrho rau kev kawm siv. Calcium carbonate (tshwj xeeb "hnyav" calcium carbonate) tsis khov ntawm nws tus kheej; nws yuav tsum tau ntxiv cov khoom sib khi (xws li PVA lossis hmoov txhuv nplej siab). Qhov no txuas ntxiv lub sij hawm solidification mus rau ntau tshaj 10 feeb, tab sis qhov tshwm sim chalk yog ib qho nyuaj thiab hnav ntau dua -resistant, ua rau nws nquag siv rau kev lag luam cim. Nyob rau hauv cov nqe lus ntawm kev ua haujlwm, kev hloov ntawm cov khoom siv raw ntawm tib lub tshuab tsis tas yuav hloov pwm nws tus kheej; Txawm li cas los xij, koj yuav tsum tau kho ob qhov tshwj xeeb: cov dej- mus rau - cov khoom sib piv thiab lub tshuab nqus tsev. Rau gypsum hmoov, dej - mus rau - gypsum piv feem ntau yog nyob ib ncig ntawm 0.6 txog 0.7; rau cov calcium carbonate, cov kua- rau- cov khoom sib piv yuav tsum qis dua me ntsis - txwv tsis pub, cov sib tov yuav nyias dhau los ua kom zoo thiab ua rau cov kab noj hniav. Hais txog lub tshuab nqus tsev: rau gypsum hmoov, qhov chaw ntawm 0.6 mus rau 0.7 bar yog txaus; Txawm li cas los xij, rau calcium carbonate, lub tshuab nqus tsev yuav tsum tau rub mus rau ntau tshaj 0.8 bar kom ntseeg tau tias kev cog lus kom raug. Ib qho yuam kev ua los ntawm cov neeg pib tshiab yog ua tsis tau raws li qhov ntsuas lub tshuab nqus tsev thaum hloov cov ntaub ntawv raw - qhov tshwm sim yog ib pawg ntawm chalk riddled nrog honeycomb -zoo li lub hnab ntim cua.
Puas yog kev ua haujlwm ntawm lub tshuab nyuaj? Cov neeg ua haujlwm puas tuaj yeem kuv npaj yuav ntiav-txawm tias cov kev kawm tsis raug cai- kawm paub siv nws li cas?
kiag li. Peb tau ntsib thiab ua tiav txawm tias qhov xwm txheej hnyav tshaj plaws: piv txwv li, ib tus neeg siv khoom hauv Yunnan xeev uas nws cov neeg ua haujlwm tseem tsis tau kawm tiav tsev kawm ntawv theem pib thiab muaj kev txawj nyeem ntawv tsawg heev. Lub vaj huam sib luag muaj plaub lub nyees khawm: Ntsuab (Pib), Liab (Stop), Phau Ntawv Grouting, thiab Phau Ntawv Demolding. Cov icons yog tsim los zoo li lub teeb tsheb. Peb muab daim ntawv A4 rau tus neeg teb xov tooj qhia txog cov kauj ruam: 1. Xovxwm Ntsuab; 2. Tos kom lub teeb nyem peb zaug; 3. Rub tawm lub tais khoom. Tsis pub dhau ob hnub, nws muaj peev xwm khiav lub tshuab ntawm nws tus kheej. Qhov nyuaj tsis yog kev ua haujlwm nws tus kheej, tab sis kev tsim. Koj yuav tsum qhia nws txog kev txiav txim siab qhov sib xws ntawm cov slurry{11}}los ntawm kev ntxig ib rab diav, rub nws tawm, thiab saib xyuas cov slurry thaum nws drips maj mam nqes; nws yuav tsum tsim ib tug nruam kwj tsis tawg los yog clumping. Qhov no yuav tsum muaj qee yam "xav," tab sis nrog rau ib lub lim tiam ntawm kev xyaum, ib tus tuaj yeem paub nws. Tsis txhob cia siab tias tus neeg ua haujlwm nkag siab txog gypsum chemical; Koj tsuas yog yuav tsum qhia nws tias, "Yog tias nws tuab dhau, ntxiv dej ntxiv; yog tias nws nyias dhau, ntxiv hmoov ntxiv," thiab nws yuav tuaj yeem kho kom raug.
Lub tshuab puas tuaj yeem tawg? Yuav tsum muaj kev tu ncua li cas?
Cov khoom uas yooj yim tshaj plaws tsis yog lub cev muaj zog, tab sis yog cov pwm thiab cov ejector pins. Cov pwm muaj precision-drilled qhov; Nyob rau tib lub sijhawm, siv gypsum slurry ua rau cov nplai tsim hauv lawv. Txhua ob lub lis piam, koj yuav tsum dismantle cov pwm, tsau lawv nyob rau hauv dilute hydrochloric acid, thiab ces siv ib tug mos txhuam los ntxuav lub qhov. Yog tias koj tsis saib xyuas cov kauj ruam no, cov phab ntsa sab hauv ntawm lub qhov yuav dhau los ua ntxhib, ua rau lub ntsej muag ntawm cov chalk raug khawb lossis roughened thaum lub sijhawm demolding. Raws li rau lub ejector pins, ua kom qhuav (tsis muaj khoom siv) txhua hnub ua ntej pib tsim khoom; siv lub ntsuas ntsuas ntsuas ntsuas lawv qhov siab, thiab kho lawv yog tias qhov sib txawv tshaj 0.2 millimeters. Misaligned ejector pins yog qhov ua rau tawg chalk sticks. Lwm qhov khoom siv yog cov roj hmab scraper hniav, uas feem ntau yuav tsum tau hloov txhua peb lub hlis ntawm tus nqi tsuas yog tshaj kaum yuan. Cov motors thiab lub tshuab nqus tsev twj tso kua mis yuav tsum muaj kev ntseeg siab rau peb mus rau tsib xyoos nyob rau hauv ib txwm siv, tab sis koj kiag li yuav tsum tau ua ke nrog ib tug voltage stabilizer -muab lub fluctuating voltage nyob rau hauv lub nyob deb nroog daim phiaj, Kuv twb pom ntau zaus uas zaus inverter tau burnt tawm.
