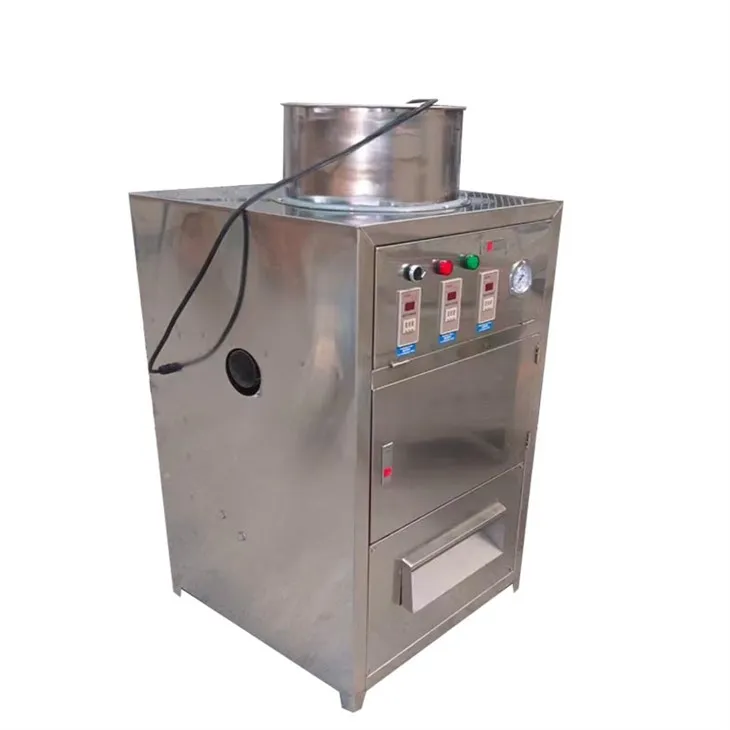

Peb lub tuam txhabQhuav Qej Peeleryog ib qho tshwj xeeb ntawm cov tshuab tsim los rau kev sib cais tsis siv neeg thiab muaj txiaj ntsig ntawm qej cloves los ntawm lawv cov tawv nqaij qhuav, fibrous txheej. Nws lub luag haujlwm tseem ceeb yog hloov cov tsoos, tsis muaj txiaj ntsig, lub sijhawm-siv, thiab tes- ua kom khaus ntawm cov qij qej los ntawm tes. Ua haujlwm ua ke nrog lub tshuab cua compressor, Cov Khaub Ncaws Cov Khaub Ncaws Cov Khaub Ncaws no tuaj yeem tsim kom muaj ntau yam huv si, tag nrho qej cloves, txhim kho kev ua tau zoo ntawm cov zaub mov ua ntej - ua rau kev tsim khoom. Nws yog ib qho cuab yeej tseem ceeb rau chav ua noj niaj hnub thiab kev lag luam ua zaub mov.
Txoj Cai Ua Haujlwm Core
Cov thev naus laus zis tseem ceeb ntawm peb lub tshuab tev tawm yog ua raws li kev sib xyaw ua ke ntawm kev sib txhuam ntawm lub cev thiab kev sib cais ntawm huab cua. Peeling ua tiav nrog kev pab ntawm lub tshuab cua compressor.
Sab hauv phab ntsa ntawm peb lub tshuab ua haujlwm chamber feem ntau yog ua los ntawm cov khoom noj - qib roj hmab lossis ib qho tshwj xeeb roughened nto. Thaum lub chamber tig los yog vibrates ntawm kev kub ceev, khaus thiab tsis sib xws thiab kev sib txhuam tshwm sim ntawm cov dos cloves thiab nruab nrab ntawm cov cloves thiab cov phab ntsa sab hauv. Qhov kev siv lub cev tas li no ua rau lub kua muag zoo thiab tshem tawm cov tawv nqaij qhuav, tawv tawv ntawm cov qej cloves yam tsis muaj kev puas tsuaj rau cov qij qej kernels hauv. Cov tawv nqaij tawv nqaij uas tau tshem tawm yog qhov hnyav, thaum cov qij qej hnyav dua. Lub tshuab ua tau -hauv kiv cua tsim cov cua ntws tswj, siv qhov sib txawv ntawm qhov sib txawv ntawm ob los tshuab cov tawv nqaij sib dua ntawm cov chav ua haujlwm thiab sau rau hauv lub hnab plua plav los ntawm cov yeeb nkab tshwj xeeb; thaum qhov hnyav dua, cov tshuaj ntxuav qej tseem nyob hauv qab ntawm lub chamber, yog li ua tiav kev sib cais ntawm cov tawv nqaij thiab cov kernels.
Main Structure thiab Cheebtsam ntawm lubQhuav Qej Peeler
Ib qho tshuaj qej tawv nqaij tshem tawm feem ntau suav nrog cov khoom tseem ceeb hauv qab no:
1. Fais fab System: Lub cev muaj zog muab lub zog tseem ceeb, tsav lub chamber ua haujlwm kom tig los yog vibrate.
2. Peeling Chamber: Qhov chaw ua haujlwm tseem ceeb, nws cov phab ntsa sab hauv yog tsim los nrog cov qauv tsim kom muaj kev sib txhuam.
3. Airflow System: muaj cov kiv cua thiab cov pa cua, lub luag haujlwm rau kev tsim cov cua ntws rau kev sib cais cov dos tawv.
4. Tswj System: Feem ntau yog ib qho yooj yim timer hloov los yog qhov kev pab cuam khawm, tso cai rau tus neeg siv los tswj lub tev lub sij hawm kom haum cov sib txawv batch ntawm qej cloves.
5. Pub Inlet thiab Discharge Outlet: Siv rau kev pub mis rau hauv dos cloves nrog daim tawv nqaij thiab tshem tawm cov dos kernels.
6. Daim tawv nqaij tawm qhov hluav taws xob thiab cov khoom siv sau: Siv rau kev tshem tawm thiab sau cov tawv dos sib cais.
Raws li qhov tshwm sim thiab kev tsom xam muaj peev xwm, lawv feem ntau muab faib ua ob pawg:
Hauv tsev me me thiab nruab nrab-sized peeling machines: Kuj hu ua ntsug zaub tev tshuab, nrog lub peev xwm ntawm 100-500 kg / h. Qhov kev puas tsuaj ntawm qej nqaij yog tsawg, feem ntau ntawm 2%.
Kev lag luam / kev lag luam loj - nplai tev tshuab: Muaj peev xwm ntawm 500 kg txog 2000 kg / h, ua los ntawm cov khoom siv ruaj khov xws li stainless hlau, siab automated, thiab muaj peev xwm ua haujlwm tsis tu ncua.
Qhov no series ntawm Qej Skin Remover, xws li los ntawm compact RX-30 mus rau lub siab -efficiency RX-800, muaj ntau yam kev xaiv muaj peev xwm rau txhua yam ntawm cov chav ua noj hauv tsev mus rau cov chaw tsim khoom noj. Tus lej qauv qhia meej meej qhia txog kev nce qib hauv kev ua haujlwm.
Cov Khoom Muag Khoom tiav
Thov saib peb tiam tshiab Qej Skin Remover. Nws tuaj yeem hloov kho cov txheej txheem tedious Qej Skin Remover rau hauv ib qho - khawm automated ua haujlwm nyob rau hauv kaum vib nas this, ua tiav qhov tev tawm ntawm ntau dua 95% thaum khaws cia qhov ncaj ncees thiab freshness ntawm qej cloves mus rau qhov loj tshaj plaws. Nws yog qhov kev xaiv zoo tshaj plaws rau kev txhim kho kev ua haujlwm thiab txo cov nqi.
Related cov cav tov ntawmQhuav Qej Peeler
Cov kab ntau lawm no ua tiav kev ua haujlwm siab thiab ua haujlwm tau zoo los ntawm tag nrho cov qej los ntxuav qej los ntawm kev sib koom ua haujlwm ntawm qej clove splitting tshuab, elevator, thiab Qej tawv Remover
ua faq
Q1: Lub tshuab ziab khaub ncaws ua haujlwm li cas? Nws puas chop qej?
A: Tsis yog, nws tsis chop. Nws tsuas yog nyob ntawm kev sib txhuam ntawm lub cev thiab kev sib cais ntawm huab cua. Lub tshuab siv siab -kev sib hloov ceev lossis kev vibration los tsim kev sib txhuam ntawm cov cloves thiab nruab nrab ntawm cov cloves thiab cov phab ntsa hloov tau yooj yim, yog li tshem tawm ntawm daim tawv nqaij. Airflow ces cais cov tawv nqaij sib zog los ntawm cov ntsiav hnyav. Tag nrho cov txheej txheem tsis cuam tshuam nrog cov hniav, xyuas kom cov kernel tseem nyob li qub li sai tau.
Q2: Puas yog nws puas ua rau cov zaub cloves?
A: High-cov qej peelers zoo tau zoo-tsim kom muaj kev puas tsuaj tsawg heev (xws li,<5%). It generates "soft friction," designed to peel the dry outer skin rather than cut the flesh, so most kernels remain intact and smooth.
Q3: Cov zaub puas yuav tsum tau kho ua ntej siv?
A: Yooj yim pretreatment yog yuav tsum tau. Tag nrho lub taub hau ntawm qej yuav tsum xub muab cais rau hauv ib tus neeg cloves. Txawm li cas los xij, soaking hauv dej feem ntau tsis tsim nyog, vim tias cov tawv nqaij ntub dhau tuaj yeem ua rau nws lo thiab cuam tshuam cov nyhuv tev.
Muaj pes tsawg tus qauv ntawm lub tshuab muaj, thiab cov kev txwv tshwj xeeb yog dab tsi?
Peb ntsug qej peeling tshuab series, ua los ntawm cov hlau tsis muaj steel, muaj cov qauv ntawm RX-30 rau RX-800 nrog lub peev xwm ntawm 30-800 kg / h, lub zog los ntawm 2.2-37 kW, tso ntim ntawm 0.25-5.6 m³ / min, siab ntawm 0.8-1.25 MPa, 220V, 04 kg ntawm qhov hnyav thiab kev xaiv haum rau cov txheej txheem sib txawv.
Peb qhov chaw nyob
No.10th, Yulan Road, High-Tech IndustrialDevelopment Zone, Zhengzhou City, Henan Province, Suav
Xov tooj
+86-371-55960109
+8615838007835
E -mail
goldenmachinerysusan@gmail.com
Qej peeling tshuab
|
Qauv |
Tus kheej - sib piv cua compressor |
Tshuab parameters |
|
RX-30 |
Lub Zog: 2.2 kW Cov pa tawm: 0.25m³ / min Siab: 0.8MPa Qhov hluav taws xob: 220V |
Lub hwj chim: 0.2KW / 220V Luj: 40 (KG) Qhov Loj: 470x460x780 (MM) Ntau lawm: 30 (KG / H) Khoom siv: Stainless hlau |
|
RX-150 |
Lub Zog: 7.5 kW Cov pa tawm: 1.05 m³ / min Siab: 1.25 mpa Lub cev muaj zog: 380V |
Lub hwj chim: 0.2KW / 220V Luj: 80 (KG) Loj: 620x600x1300 (MM) Cov zis: 150 (KG / H) Khoom siv: Stainless hlau |
|
RX-300 |
Lub Zog: 11 kW Cov pa tawm: 1.6 m³ / min Siab: 0.8 mpa Lub cev muaj zog: 380V |
Lub hwj chim: 0.2KW / 220V Luj: 95 (KG) Qhov Loj: 700x720x1380 (MM) Ntau lawm: 300 (KG / H) Khoom siv: Stainless hlau |
|
RX-500 |
Lub Zog: 22 kW Cov pa tawm: 3.2 m³ / min Siab: 1 mpa Lub cev muaj zog: 380V |
Lub hwj chim: 0.2KW / 220V Luj: 140 (KG) Qhov Loj: 1000x720x1480 (MM) Ntau lawm: 500 (KG / H) Khoom siv: Stainless hlau |
|
RX-800 |
Lub cev muaj zog: 37 kW Cov pa tawm: 5.6 m³ / min Siab: 1 mpa Lub cev muaj zog: 380V |
Lub hwj chim: 0.2KW / 220V Luj: 190 (KG) Loj: 1240x720x1480 (MM) Ntau lawm: 800 (KG / H) Khoom siv: Stainless hlau |
Cim npe nrov: qhuav qej peeler, Tuam Tshoj qhuav qej peeler lwm tus neeg, hoobkas
