Cov khoom siv loj ntim tshuab ntim tshuab yog cov khoom siv ntim khoom ntim uas siv tau rau cov ntaub ntawv loj xws li granules thiab hmoov. Lawv tau siv dav hauv kev lag luam xws li nplej, chiv, pub, thiab yas pellets. Lawv feem ntau muaj xws li kev ntsuas qhov hnyav, ntim cov khoom siv, cov khoom siv thauj khoom, thiab cov tshuab xaws, ua kom muaj kev ua haujlwm zoo los ntawm cov khoom siv tsis siv neeg ntsuas thiab ntim rau kev xa khoom thiab sealing.
Scope ntawm cov chiv ntim tshuab
Peb lub tuam txhab cov tshuab tshiab tiam no khav theeb muaj zog yoog rau ntau yam khoom ntim: lawv tuaj yeem siv nrog ntau hom kev ntim khoom xws li hnab woven, hnab burlap, hnab ntaub, thiab hnab yas, tso cai rau kev xaiv yooj yim raws li cov khoom sib txawv thiab cov kev xav tau ntim, ua rau lawv siv tau dav.
Peb lub tshuab ntim khoom loj - cov khoom ntim khoom muaj ntau yam kev siv: lawv tuaj yeem ua ntau hom khoom, suav nrog cov chiv organic, nplej, noob, tshuaj raw khoom, thiab pub pellets, thiab tau siv dav hauv kev ua liaj ua teb, tshuaj, thiab kev lag luam pub noj.
Tsis tas li ntawd, lawv tsim nyog rau ntau hom ntaub ntawv: peb cov khoom ntim tshuab tuaj yeem ua tau zoo thiab ua kom tiav cov ntim ntawm ntau hom ntaub ntawv, suav nrog granular, hmoov, thiab cov khoom sib xyaw.
Cov Khoom Siv: Ua kom muaj txiaj ntsig zoo thiab meej ntim ntawm granular, hmoov, lossis cov khoom sib xyaw.
Workflow ntawm cov chiv packing tshuab
Lub kaw lus ntiav cov txheej txheem automated ntawm "kev tuav lub hnab ntim khoom → tsis siv neeg puv → tsis siv neeg hnyav → hnab conveying → sewing / sealing". Cov neeg ua haujlwm tsuas yog yuav tsum tso lub hnab ntim rau hauv txoj haujlwm manually; cov cuab yeej yuav cia li ua kom tiav cov khoom ntim thiab qhov hnyav, tom qab ntawd xa cov khoom ntim rau hauv lub tshuab xaws lossis sealing theem. Tag nrho cov txheej txheem yog automated, txo cov kev cuam tshuam ntawm phau ntawv, txhim kho kev ntim khoom, thiab ua kom cov ntim zoo ib yam.
Cov txiaj ntsig tseem ceeb ntawm lub tshuab ntim tsis siv neeg
High -precision electronic automatic weighting system rau lub tshuab ntim khoom: Peb cov cav tov siv cov cuab yeej siv hluav taws xob siab tshaj plaws los ntsuas txhua lub hnab ntawm cov khoom kom raug, tswj cov khoom hnyav thiab ua kom cov ntim ntim tau raws li cov qauv tsim khoom nruj.
Kev tsim ua haujlwm yooj yim: Peb cov cuab yeej ua kom muaj kev nkag siab zoo ntawm cov neeg siv interface thiab cov txheej txheem tswj kom meej. Kev cob qhia yooj yim yog txhua yam nws yuav siv los ua kom nws txoj haujlwm sai, txo qis kev ua haujlwm nyuaj thiab txhim kho kev ua haujlwm zoo.
Sau qhov ntau ntawm lub hnab ntim tshuab
Lub tshuab ntim cov chiv no npog lub ntim thiab ntim ntau ntawm 1-50kg. Tus txheej txheem kom muaj nuj nqis tuaj yeem hloov kho tau yooj yim raws li kev ntim khoom xav tau ntawm cov khoom sib txawv. Nws tuaj yeem ua tau raws li cov ntim ntim ntawm qhov me me (xws li 1kg cov qauv kuaj) thiab tseem paub txog qhov loj ntawm cov khoom hnyav (xws li 50kg chiv thiab pub). Nws muaj zog adaptability nyob rau hauv lub ntim hnyav ntau thiab muab ib tug ib-nres kev daws teeb meem rau tag nrho cov scenarios, los ntawm cov qauv ntim mus rau industrial loj ntim, ntxiv expanding daim ntawv thov nqi ntawm cov khoom nyob rau hauv txawv industries thiab ntau lawm teev.

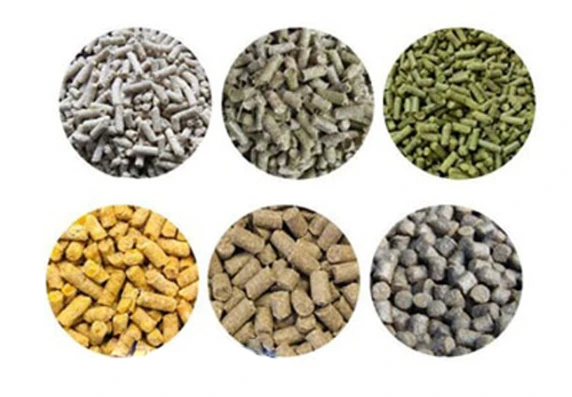

Kev ua tiav pellet ntim cov kab ntau lawm yog ib qho loj - nplai ntau lawm uas ua ke nrog cov khoom siv raw pretreatment, tsim thiab ua, conveying thiab hloov mus, thiab automated ntim. Nws cov tub ntxhais muaj plaub yam khoom tseem ceeb: lub crusher, elevator, pellet zeb, thiab lub tshuab ntim khoom. Txhua daim ntawm cov khoom siv sib cuam tshuam thiab ua haujlwm hauv kev sib koom ua ke, ua kom muaj kev lag luam ntawm cov pellets los ntawm cov khoom siv raw mus rau cov khoom tiav. Nws yog dav siv rau ntau qhov chaw xws li kev ua qoob loo, kev tsim khoom noj, kev tsim cov chiv, thiab kev ua tshuaj nruab nrab, muab kev txhawb zog rau kev tsim cov khoom lag luam granular.
Lus Cim: Lub tshuab ntim khoom yuav tsum tau siv ua ke nrog lub tshuab cua compressor.
Peb qhov chaw nyob
No.10th, Yulan Road, High-Tech IndustrialDevelopment Zone, Zhengzhou City, Henan Province, Suav
Xov tooj
+86-371-55960109
+8615838007835
E -mail
goldenmachinerysusan@gmail.com
|
Qeb khoom siv |
Lub npe Parameter |
Tus nqi Parameter |
|---|---|---|
|
GM -50A-DLZ Bulk Material Ntim Tshuab |
Qauv |
GM-50A-DLZ |
|
Packing Range |
5-50 kg |
|
|
Packing Precision |
0.5% |
|
|
Ntim ceev |
100-180 hnab / h |
|
|
Hluav taws xob qhov chaw |
380-220V, 50HZ |
|
|
Lub cev muaj zog |
0.37 kw + 0.37 kw + 0.37 kw |
|
|
Hopper Dimension (Diameter × Qhov siab) |
700mm × 1000mm |
|
|
Khoom hnyav |
400 kg |
|
|
Zuag qhia tag nrho Dimension |
2300mm × 900mm × 3000mm |
|
|
Cov cuab yeej sib txuam |
Xws li Cua Compressor |
|
|
Sib piv Air Compressor |
Dawb Huab Cua Muaj Peev Xwm |
0.1 M³ / min |
|
Tshem Tawm Siab |
0.7mpa ua |
|
|
Cua Compressor Dimension |
750mm × 350mm × 650mm |
|
|
Cua Compressor Nyhav |
100 kg |
